Mercedes GLS 350d: installing a Thor Active Sound Level 4 on a luxury 7-seat SUV
The Mercedes GLS is a rolling monument. Nearly five metres long, seven seats, a cabin as hushed and refined as an S-Class, and a six-cylinder diesel engine that delivers its power with almost unsettling discretion.
But a flagship deserves a voice.
Here is how a Thor Level 4 kit was installed on this GLS 350d.
The GLS 350d, a SUV engineered for silence
The Mercedes GLS belongs to a category of its own. It is not simply a large SUV, but a luxury vehicle designed to carry up to seven passengers with a level of comfort comparable to that of a long-distance limousine.
Everything in its design points toward one single objective: isolating the occupants from the outside world. Air suspension, premium sound insulation, acoustic glazing, an encapsulated engine architecture. The result is striking: even under full load and at high speed, the cabin remains impressively quiet.
The vehicle is magnificent to drive, but it no longer communicates anything of the mechanical work happening beneath the bonnet.
The six-cylinder diesel hidden beneath the insulation
The GLS 350d is equipped with an inline six-cylinder diesel producing around 286 horsepower and massive torque. On paper, it is a noble powertrain, fully in line with Mercedes’ tradition of refined high-capacity engines.
In practice, the driver mostly experiences its efficiency, but rarely its personality. The vehicle moves forward in a smooth, effortless manner, yet without any audible character. Even under full acceleration, the cabin reveals almost nothing of the mechanical effort taking place.
This is precisely the gap the Thor system is designed to fill. Not by transforming the engine, but by restoring what the vehicle’s sound insulation refuses to let through.
Why Level 4 makes sense on a vehicle the size of the GLS
For this GLS 350d, the owner chose a Thor Level 4 kit, consisting of two metal Thunder speakers.
On a SUV of this size, this is the configuration that makes technical sense. The GLS is more than five metres long and carries considerable mass. A lighter setup could feel undersized relative to the vehicle’s volume and the quality of its insulation.
With two Thunder speakers working together, the result is coherent acoustic pressure, true underbody stereo diffusion, and a sound presence that genuinely matches the vehicle’s stature. This is the recommended configuration for large premium SUVs and diesel luxury sedans.
Step 1: vehicle assessment and preparation
Before even touching the vehicle, the first step is to analyse the specific configuration of this GLS 350d. Every vehicle has its own CAN network access points, its own cable routing possibilities, and its own usable locations beneath the chassis.
On this GLS, we identified in advance the best mounting points for the two Thunder speakers, as well as the ideal location for the electronic module inside the vehicle, in a discreet area of the boot.
This preparation phase is essential. It ensures a clean, durable installation that fully respects the model’s specific constraints.
Step 2: installation of the electronic module
The core of the Thor system is its electronic module. It reads vehicle information through the CAN network — engine speed, throttle position, speed — and controls in real time the sound emitted by the speakers.
On this GLS, the module was installed inside the boot, in a hidden area without compromising usable space. This location protects it against temperature variations and projections, while keeping it accessible for any future intervention.
The connection to the 12V electrical system is made on an ignition-switched power supply, in a clean manner, without any cutting or soldering on the original Mercedes wiring loom.

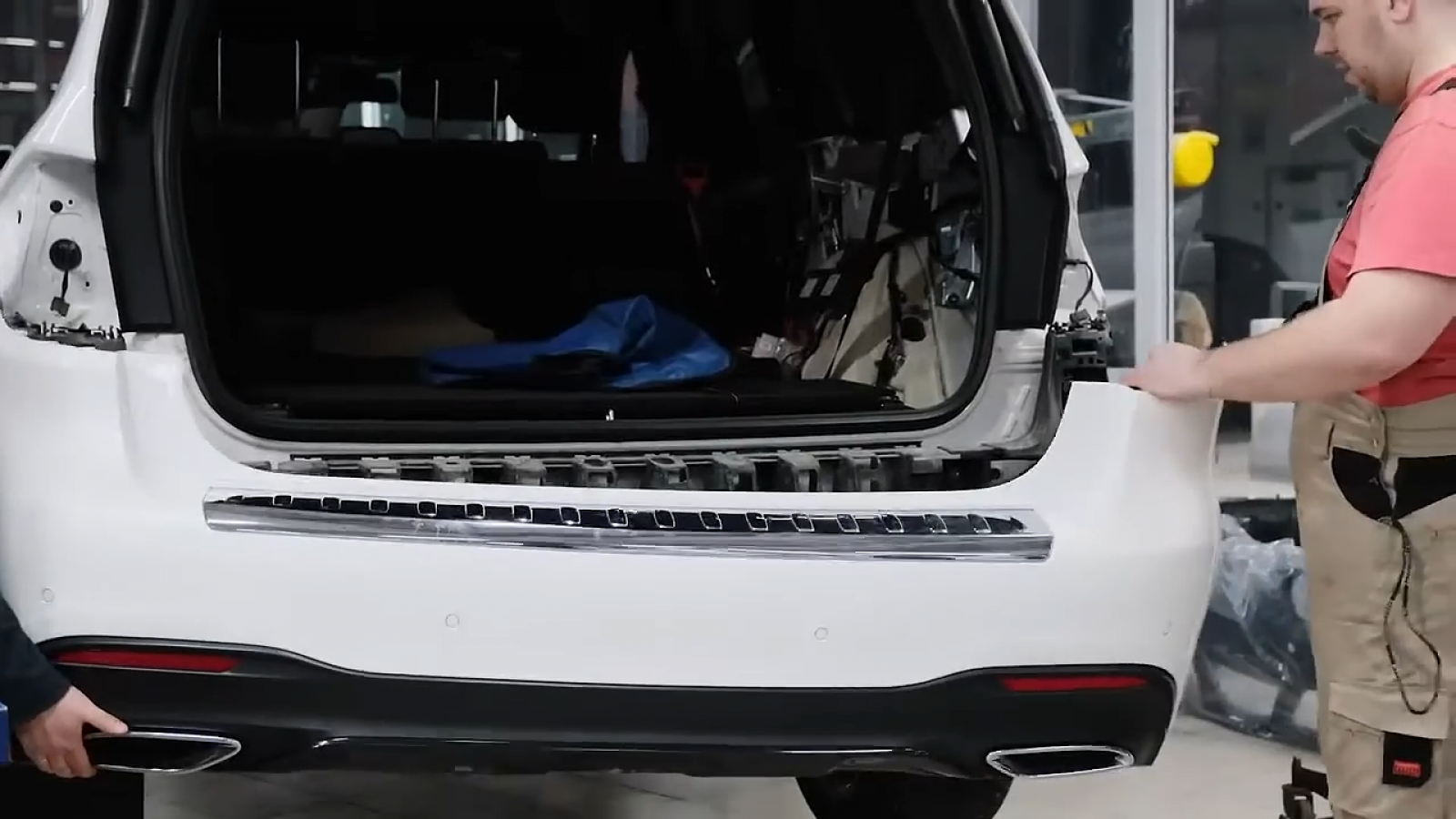

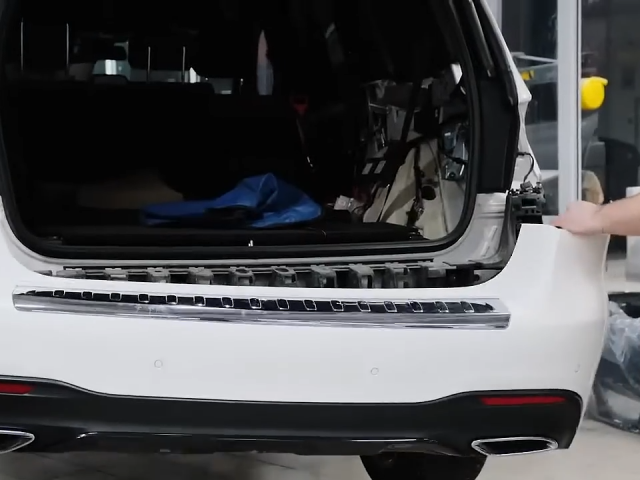

Step 3: rear bumper removal
To install the two Thunder speakers under the best possible conditions, it is necessary to remove the GLS rear bumper. This step may seem surprising, but it is in fact standard practice in any serious work carried out on a premium vehicle.
The bumper is removed using the appropriate tools, without forcing clips or screws, in order to preserve the integrity of the original plastics and factory mounting points. Once the bumper is removed, the rear reinforcement bar becomes accessible, providing a solid area for mounting the speaker brackets.
This approach makes it possible to achieve an invisible, robust, and perfectly integrated installation, with no visible element once the bumper has been refitted.

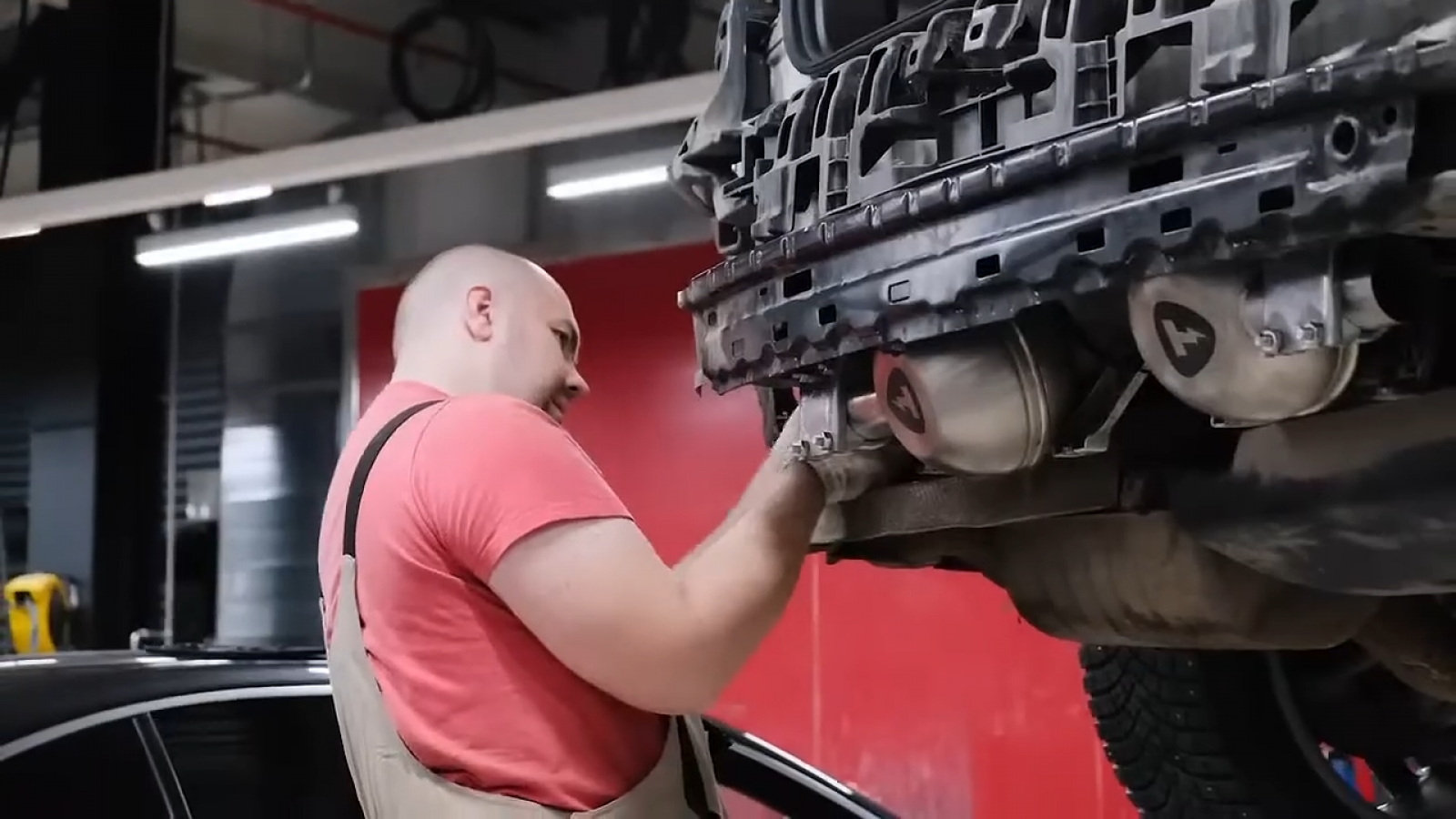

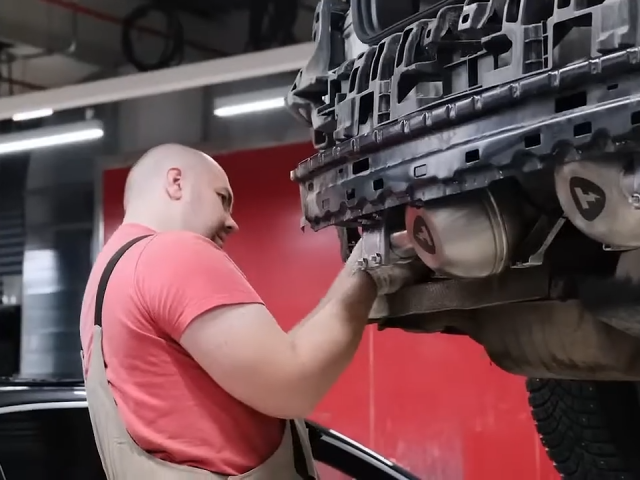

Step 4: mounting the two Thunder speakers
The two Thunder speakers are mounted behind the bumper reinforcement bar using brackets specifically manufactured to match the GLS geometry. On this type of vehicle, custom brackets are often necessary because available space and anchoring points vary from one model to another.
Their orientation was calibrated according to the manufacturer’s recommendations: flared end facing downward, opposite to the direction of travel, and always above ground clearance level. This orientation ensures both optimal sound diffusion and mechanical protection against road spray and debris.
The Thunder speakers are made of metal and designed to withstand vibrations, moisture, and thermal shocks. Once mounted, they become an integral part of the vehicle, with no play and no contact with moving body components.
Step 5: cable routing and connection
The wiring connecting the module to the speakers is routed through the vehicle’s existing passages, following the original loom paths wherever possible. Rubber or plastic grommets protect the critical passage points, especially around the floor and the exit points toward the outside.
The connection to the CAN network is carried out with the module disconnected and the battery temporarily disconnected as well, in accordance with the Thor installation protocol. This precaution protects both the vehicle’s electronics and the system’s own components.
The two CAN wires are correctly twisted in line with automotive wiring standards, in order to prevent electromagnetic interference.
Step 6: configuration via the mobile app
Once the physical installation is complete, the configuration phase begins. The Thor module is paired via Bluetooth with the dedicated mobile app and then programmed specifically for the GLS 350d by selecting the model, generation, and engine variant within the application.
This step is fundamental: it allows the module to correctly read the specific data from the Mercedes CAN network and synchronise the sound with the vehicle’s actual behaviour.
The owner can then browse the library of available sound profiles, test the three modes (City, Sport, Custom), and choose the one that best suits his use. On this GLS, we selected a powerful and deep profile, in keeping with the standing and presence of the vehicle.
Step 7: reassembly and final testing
Once the configuration has been validated, the bumper is refitted, all mounting points are checked, and operational tests are carried out in all three modes. Engine start-up, free-rev accelerations, rising revs, and deceleration phases are all checked to ensure that the sound responds correctly to the vehicle’s behaviour.
The entire installation requires no permanent modification, no intervention on the engine, and no alteration to the exhaust system. From the outside, once the vehicle is back on the ground, nothing reveals the presence of the system. The car remains strictly identical to its original state — until the driver decides to activate the sound.
The feeling after installation
Before installation, this GLS 350d was already an exceptional vehicle to drive: quiet, comfortable, and serene on every type of road. But for its owner, it also felt a little too restrained compared to its potential.
After the Level 4 installation, the vehicle regains a sound dimension that is consistent with its size. Start-up has weight, throttle response has substance, and rising revs finally tell a story. Comfort remains identical, but driving pleasure takes a clear step forward.
What changes above all is the perceived coherence between the size of the vehicle, its power, and what it allows you to hear. The GLS no longer feels muted. It feels complete.
A solution designed for a vehicle of this standing
The GLS 350d is a vehicle meant to be kept over time, to preserve its resale value, and to return to a Mercedes dealership without drawing attention. Any modification considered on this type of vehicle must respect three criteria: reversibility, installation cleanliness, and no impact on the warranty.
The Thor system meets all three. No soldering on original parts, no structural drilling, no alteration to the exhaust line or emissions system. The module can be deactivated through the app, or removed entirely if the owner wishes.
For a new or nearly new vehicle still under warranty, this is the only approach truly compatible with the standards expected by a Mercedes owner.
The final result on this Mercedes GLS 350d
With the installation of a Thor Level 4 kit, this GLS 350d gained exactly what it was missing: a voice worthy of its stature, without sacrificing any of its comfort or refinement.
The vehicle remains a family flagship SUV, silent by default, capable of carrying seven people in premium conditions. But at the driver’s command, it also becomes a SUV that can be heard, that expresses itself, and that fully embraces its presence.
For owners of a GLS, GLE, Q7, X5, or diesel Cayenne looking to restore some character without ever compromising the standing of their vehicle, this installation is a concrete, clean, and lasting solution.
Would you like to give your Mercedes a voice?
The Thor system is available in several configurations tailored to each vehicle. From sedans to large 7-seat SUVs, including hybrid and electric models, there is a kit sized for every use and every budget.
